IOT FLOW METER

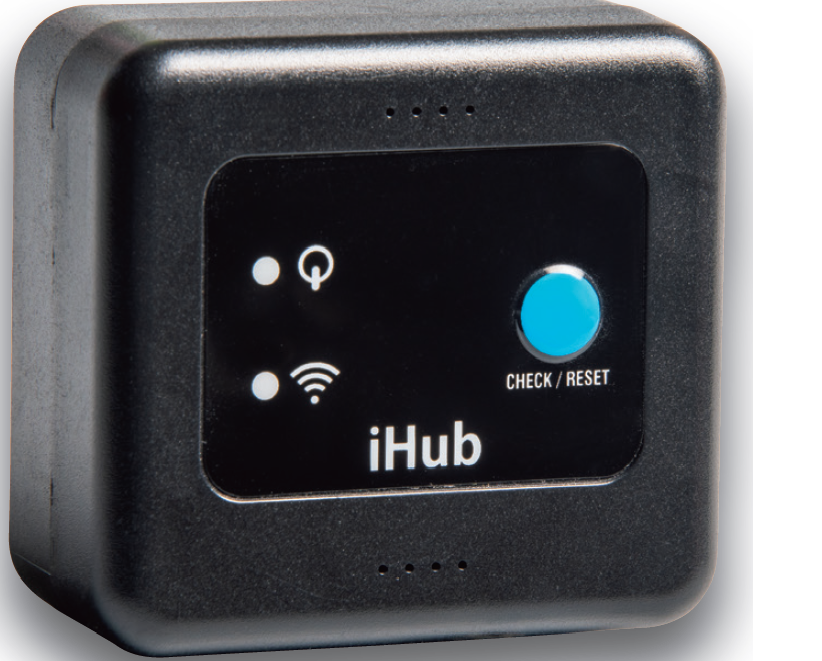

iHub
The iHub GW-058 is a gateway to read data from the BT-058 flow meter by Bluetooth connection , and transmit the data to iMeter Cloud system by WiFi connection via internet.
Feature
- The iHub can connect up to 8 BT-058 flow meters.
- The time interval for read and transmission could be set at every 24 hours.
- The power of the iHub GW-058 is supplied by a switch power adapter.
- The input voltage is 100-24V
- Wireless transmission frequency : 2.4-GHz
- Working voltage : 5V DC
- Working current : <390 mA
- Temperature : -20 to 50℃
